T Series PTO Shaft

Industry Overview & Application Background

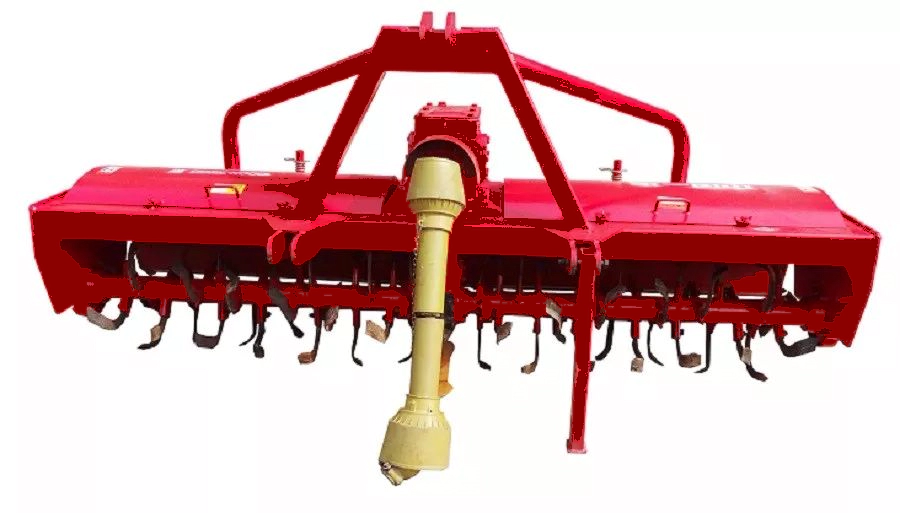

In the context of highly mechanized agriculture, the driveline is the most vulnerable yet critical artery of power. The T Series PTO Shaft has been explicitly engineered to address the catastrophic failures commonly associated with inferior aftermarket drive components. Modern tractors are delivering higher horsepower than ever before, which places immense torsional stress on the pto drive shaft when driving heavy rotational implements such as rotary tillers, large square balers, and feed mixers.

A substandard pto shaft often succumbs to galling of the telescoping tubes or premature failure of the universal joint needle bearings due to localized overheating. The T Series counteracts this through a synergy of advanced metallurgy and fluid dynamics. By utilizing 20CrMnTi alloy steel for the cross journals and subjecting them to deep carburizing, we achieve a hardened wear-resistant shell with a ductile core capable of absorbing extreme shock loads. This ensures consistent, uninterrupted power transfer from the power take-off stub to the agricultural gearbox, minimizing costly field breakdowns.

T Series Engineering Specifications & Dimensional Data

The precise kinematic matching of your powertrain requires accurate data. The comprehensive tables below detail the torque ratings, cross dimensions, and component nomenclature for the entire T Series range. Please utilize the horizontal scroll function to view complete technical parameters.

1. Operating Torque and Power Transmission Capacity

2. Universal Joint & Telescoping Tube Assembly Dimensions

Performance Advantages: The Ever-power Difference

As a distinguished pto shaft manufacturer, we frequently dissect failed components from inferior suppliers. The market is saturated with drive shafts featuring cast-iron yokes and untreated steel tubes that simply cannot withstand the rigors of modern farming. The T Series stands apart through several critical engineering upgrades:

• Forged Steel Yokes (Splined & Tube): Instead of brittle cast components, the T Series utilizes closed-die forged steel yokes. This aligns the metallic grain structure with the stress lines of the yoke ears, virtually eliminating the risk of catastrophic ear spreading under high-torque starts.
• High-Speed Dynamic Balancing: Every assembled tractor pto shaft undergoes computerized dynamic balancing. This eliminates resonant vibrations at 1000 RPM, preventing premature wear on the tractor’s PTO stub bearings and the implement’s input gearbox.
• Triangular/Lemon Profile Tubes: Unlike square tubes that tend to bind and chatter when telescoping under rotational load, our triangular-profile tubes maintain a large, smooth contact patch. This design provides self-centering characteristics and significantly lowers axial sliding friction, protecting the driveline from push-pull shock.
• Advanced Weather Shielding: The CE-certified polymer safety shields are UV-stabilized, meaning they won’t crack or become brittle under the intense Australian sun, ensuring operator safety remains uncompromised over the lifespan of the shaft.

Working Principle: Mechanics of the T Series

To fully utilize the capabilities of the T Series, one must understand its mechanical flow. The pto drive shaft functions as an articulated, length-compensating bridge. Power originates at the tractor’s splined output shaft, transferring into the drive shaft’s primary Splined Yoke. The power then navigates through the first universal joint (the Outer Cross), which accommodates the angular displacement between the tractor and the trailed implement.

The rotational force is then transferred to the Tube Yoke Outer, which is welded to the heavy-gauge Outer Tube. Because agricultural implements bounce and articulate, the distance between the tractor and the gearbox constantly changes. The triangular Inner Tube slides smoothly within the outer tube to absorb these distance changes instantly. Finally, the torque exits through the rear universal joint (the Inner Cross) and engages the implement’s agricultural gearbox. This continuous, flexible linkage is what makes mechanized PTO-driven agriculture possible.

Brand Compatibility & Aftermarket Components

Disclaimer: The following brand names are referenced strictly to aid engineering professionals in part selection and cross-referencing. Ever-power manufactures premium independent aftermarket components and does not claim any trademark affiliation with these brands.

Downtime waiting for original equipment manufacturer (OEM) parts is unacceptable during harvest or planting seasons. The dimensions of the T Series (specifically the cross sizes and the lemon-profile tubes) conform strictly to international agricultural transmission standards. Therefore, our complete drivelines and individual sub-assemblies serve as direct, high-performance upgrades. The T Series is engineered to serve perfectly as a:

• replacement of Walterscheid W-Series drivlines (matching lemon tube profiles).
• replacement of Bondioli & Pavesi global driveline systems.
• replacement of Comer Industries PTO transmission shafts.
• replacement of Weasler metric and standard series components.
• replacement of John Deere and Case IH factory-supplied implement shafts.

New South Wales Extreme Condition Field Study

In the demanding agricultural sectors of New South Wales (NSW), extreme heat and pervasive fine dust create a highly abrasive environment for mechanical joints. A recent field study conducted on broadacre wheat farms near Dubbo evaluated the survivability of various drivelines on heavy-duty grain augers. Standard shafts experienced rapid degradation of the U-joint seals, leading to grease loss, particulate intrusion, and eventual bearing seizure within a single season. The T Series shafts, equipped with our proprietary multi-lip nitrile seals and high-temperature lithium complex grease, demonstrated zero bearing failures over a two-year continuous trial. The lemon-profile tubes, naturally resistant to twisting under the auger’s heavy startup inertia, proved exceptionally reliable, reinforcing our standing as a top-tier pto shaft supplier for arid, high-dust environments.

T Series Quick Selection Guide

Selecting the correct tractor pto shaft requires systematic measurement. Follow this quick guide to determine the exact T Series model you require:

Targeted Engineering Installation Protocol

Improper installation, particularly incorrect tube cutting, is the leading cause of premature shaft failure. Follow these stringent installation steps:

1. Length Verification: Connect the un-assembled halves to the tractor and implement. Hold them parallel. At the sharpest turning angle (shortest distance), mark the tubes. There must be at least 1 inch (25mm) of clearance to prevent bottoming out.
2. Cutting the Profiles: If shortening is required, cut equal amounts from both the inner and outer safety shields, followed by cutting equal amounts from the inner and outer steel tubes. Never cut just one side.
3. Deburring (Critical Step): Use a round file to meticulously remove all burrs and sharp edges from the cut tube ends. Even a microscopic burr on the lemon-profile tube can cause severe galling and prevent smooth telescoping.
4. Lubrication Phase: Thoroughly coat the entire length of the inner sliding tube with high-quality Moly (Molybdenum Disulfide) grease before sliding it into the outer tube.
5. Securing the Shield: Connect the yokes, ensuring the locking pins click firmly into the shaft grooves. Finally, attach the safety shield anti-rotation chains to stationary points on the tractor and implement to prevent the guard from spinning.

PTO Troubleshooting & Diagnostic Matrix

Swift diagnosis minimizes machinery downtime. Here is our expert-level diagnostic matrix outlining the 10 most common driveline anomalies and their resolutions:

Engineer Field Notes: Local Industry Case Studies

Theoretical specifications mean little without real-world validation. The following are field reports from our deployment engineers across key Australian agricultural hubs, detailing the performance of the T Series pto drive shaft in diverse scenarios.

Frequently Asked Questions

Complete The Driveline: Agricultural Gearboxes

A high-performance pto drive shaft is only one half of the power delivery equation. To translate that rotational energy into specific work, it must be coupled with an equally robust reduction or acceleration unit. Ever-power is not just a pto shaft supplier; we are experts in comprehensive power transmission. We design and manufacture a complete line of agricultural gearboxes designed to mate perfectly with our T Series shafts. From right-angle bevel gearboxes for slashers to heavy-duty reduction boxes for rotary tillers, our gearboxes utilize precision-ground helical and bevel gears to ensure maximum power transfer efficiency and lowest operating noise.
