L Series PTO Shaft

Core Technology Quick Read

As a transmission systems engineer with over two decades of field and manufacturing experience, I have evaluated countless driveline components. The L Series pto shaft represents a masterclass in robust engineering, specifically designed to bridge the gap between heavy-duty agricultural tractors and their demanding implements. By leveraging advanced metallurgy, precision-forged cross and bearing kits, and dynamically balanced telescopic tubes, the L Series effectively manages high-torque transfers while mitigating torsional vibration. Whether you are operating at standard 540 RPM or heavy-duty 1000 RPM, selecting the correct tractor pto shaft is not just about fitment; it is about maximizing operational efficiency, ensuring operator safety, and minimizing costly downtime in demanding agricultural environments. For comprehensive driveline solutions, exploring a high-quality pto drive shaft is the first step toward agricultural mechanical reliability.

Overview: The Backbone of Modern Agricultural Machinery

The power take-off (PTO) system has revolutionized agricultural mechanization since its widespread adoption in the mid-20th century. Fundamentally, a pto shaft is a highly specialized mechanical linkage designed to draw rotational energy from a tractor’s engine and transmit it directly to an attached implement—be it a rotary slasher, a fertilizer spreader, a baler, or an agricultural gearbox.

In the context of the L Series, we are looking at a product line that spans from the light-duty L1 series (ideal for small sprayers and tedders) to the extreme-duty L6 and L32 series, capable of handling up to 1450 Nm of torque. The operating environment for these components is notoriously unforgiving. In countries like Australia, where ambient temperatures can soar, dust intrusion is a constant threat, and farm sizes dictate long, uninterrupted hours of operation, a standard off-the-shelf driveline will rapidly degrade. The L Series pto drive shaft is engineered to withstand these precise conditions, utilizing enhanced sealing mechanisms on the needle bearings and utilizing proprietary steel alloys for the yokes and tubes to resist fatigue failure under oscillating loads.

Technical Specifications: L Series Engineering Data

Understanding the geometric and kinetic parameters of your driveline is paramount. Below is the comprehensive technical data for the L Series tractor pto shaft lineup, meticulously extracted from our engineering catalogs. This data allows for precise torque matching and kinematic compatibility assessment.

Operating Torque Performance

The capability of a pto shaft is ultimately measured by its torque transmission efficiency. The table below outlines the dynamic power delivery (Kw and Pk) and torque (Nm) across standard 540 RPM and high-speed 1000 RPM applications, along with the Maximum Peak (MP) torque limits.

Performance Advantages: Why Our L Series Dominates

The market is flooded with substandard drivelines manufactured by unverified pto shaft suppliers. As an engineer, I base my recommendations on empirical material science and dynamic testing. Here is why the Ever-power L Series stands head and shoulders above generic alternatives:

• Premium Forged Yokes: Unlike cheaper cast-iron yokes which contain internal voids and are brittle under shock loads, our yokes are hot-forged from structural alloy steel. This aligns the internal grain structure of the metal, dramatically increasing tensile strength and resistance to shear forces.
• High-Precision Universal Joints: The cross and bearing assemblies in our agricultural pto shafts utilize high-grade carbon steel treated with advanced carburizing heat processes. This results in a hardened outer shell for extreme wear resistance and a tough core to absorb sudden impact loads from implements like rotary slashers hitting hidden stumps.
• Triangular & Lemon Profile Tubes: Inferior round tubes with single keyways fail rapidly. We utilize heavy-wall triangular or lemon-shaped profile tubing. This design maximizes the contact surface area during telescoping actions under high torque, preventing twisting and ensuring smooth extension and retraction as the tractor traverses uneven terrain.
• Friction Welded Components: The junction between the tube yoke and the profile tube is a common point of failure. Our factory employs state-of-the-art friction welding, creating a molecular bond that is stronger than the parent metals, eliminating the porosity often found in conventional MIG-welded shafts.
• CE & AS Compliant Guarding: Safety is non-negotiable. Our safety shields are constructed from UV-stabilized, high-impact polymers designed to withstand the harsh Australian sun without becoming brittle, ensuring full compliance with occupational health and safety regulations.

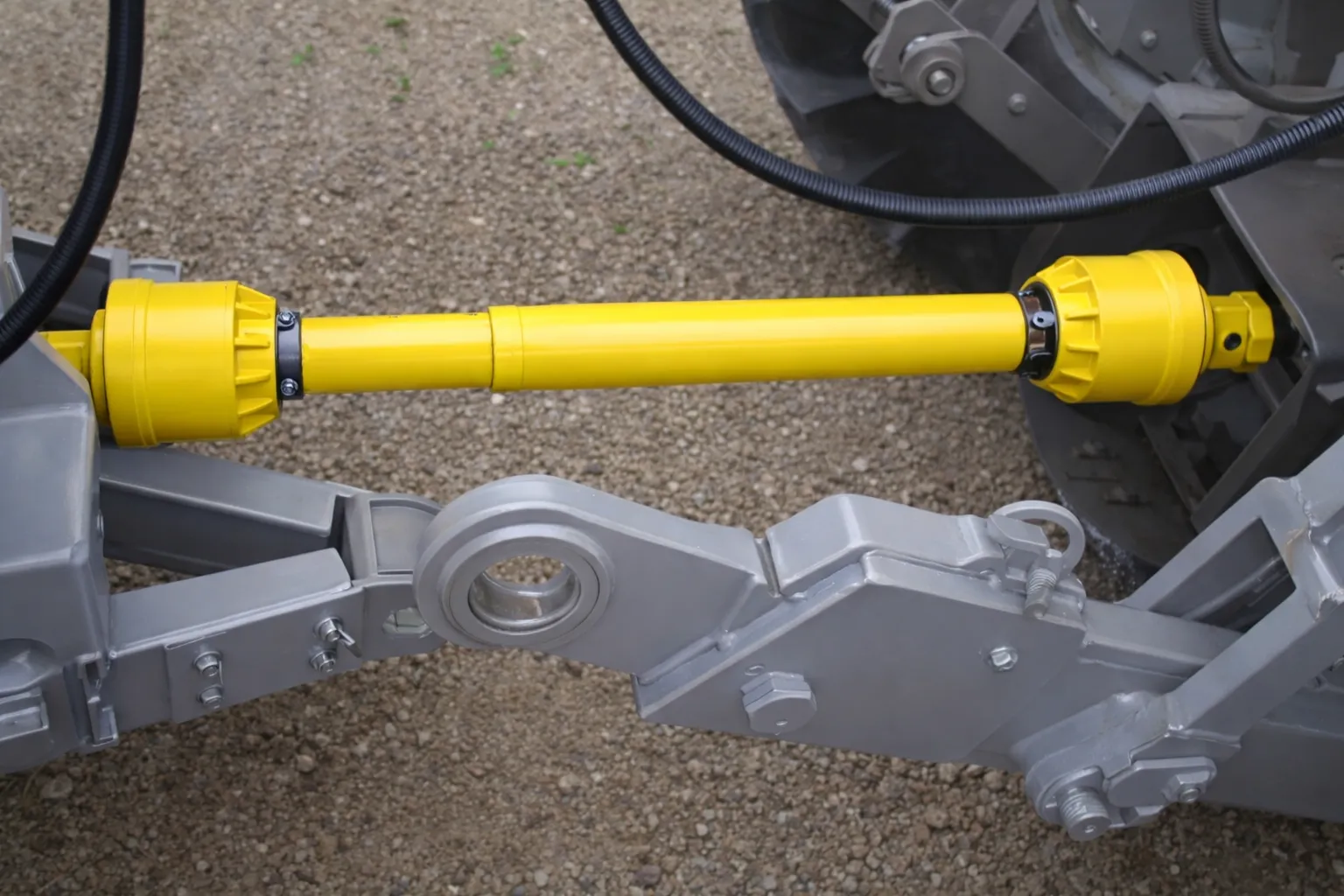

Working Principle & Application Mechanics

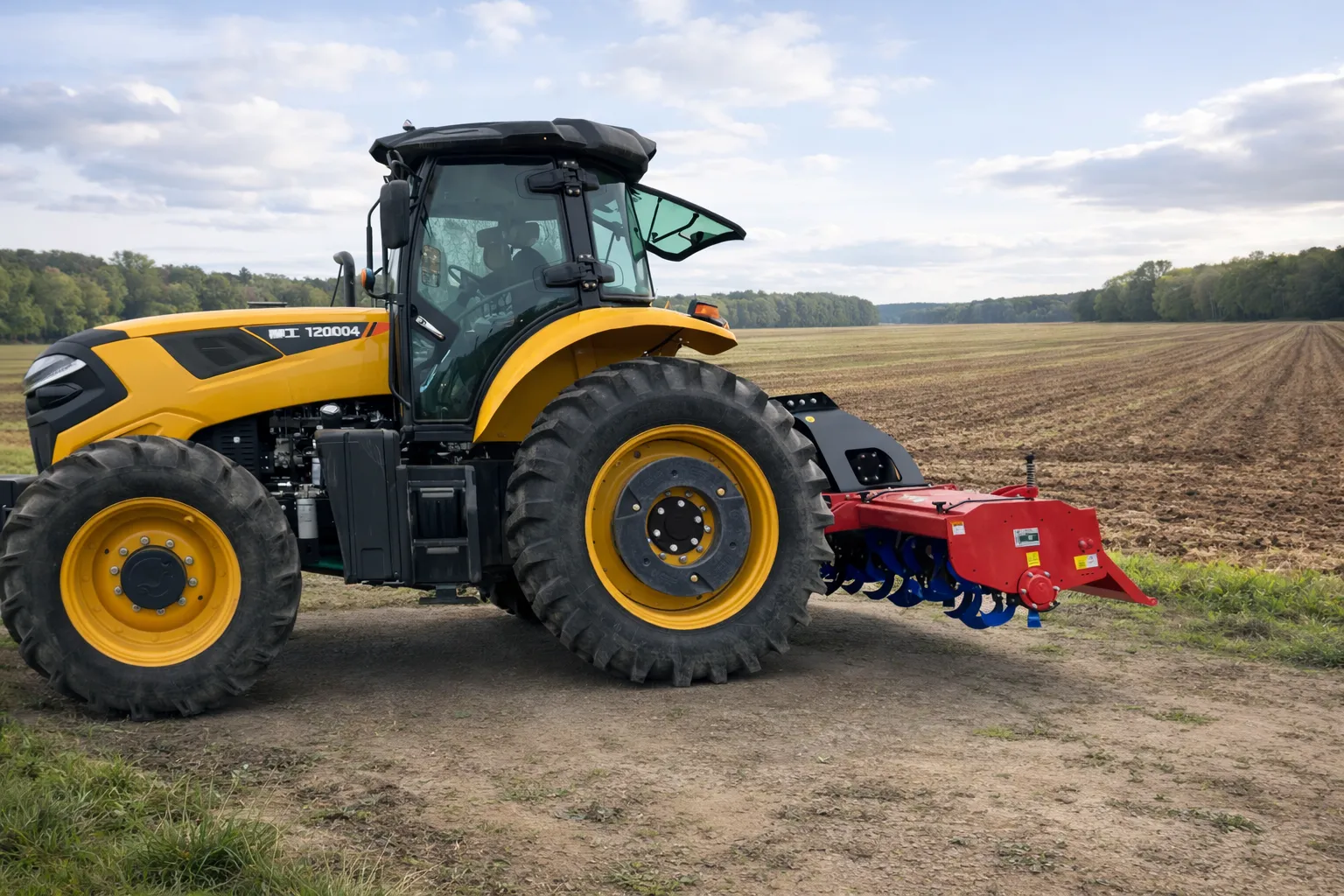

To fully appreciate the L Series, one must understand the kinematics of power transmission. A pto drive shaft is not a static component; it is a dynamic bridge. It connects the power take-off stub at the rear of the tractor to the Input Identification Card (IIC) or implement gearbox.

The Mechanics: Rotational force is generated by the tractor engine and routed through the PTO clutch. The front yoke of the shaft couples to the tractor’s stub spline. The universal joints (U-joints) at both ends are critical; they operate on Cardan’s principle, allowing the transmission of rotary motion even when the input and output shafts are not colinear. As the implement is raised or lowered by the tractor’s three-point linkage, the angle changes. The U-joints compensate for this angular misalignment (safely up to about 25 degrees continuously, and more momentarily).

Simultaneously, the distance between the tractor and the implement changes during turning or driving over undulating ground. The central telescopic tubes (outer and inner) slide against each other to compensate for this length variation. If a tractor pto shaft cannot telescope smoothly under load, it will generate immense axial thrust, catastrophicly destroying the tractor’s internal PTO bearings or the implement’s gearbox.

Brand Compatibility, Interchangeability & Replacement Parts

As a premier pto shaft manufacturer, Ever-power designs the L Series to be highly versatile. The standardized spline dimensions and yoke configurations mean our drivelines are perfectly suited as robust aftermarket replacements or OEM upgrades for a vast array of global agricultural machinery.

Disclaimer: The following brand names are mentioned solely for the purpose of demonstrating compatibility and assisting engineers and farmers in correct component selection. Ever-power is an independent manufacturer and is not affiliated with, nor endorsed by, these respective trademark holders.

Our L Series shafts perfectly integrate with equipment from industry leaders such as John Deere, New Holland, Case IH, Massey Ferguson, Kubota, Class, and Fendt. Furthermore, because we standardize our cross kits according to international metric sizing (e.g., the L4 series 27×74.6mm cross), sourcing routine replacement pto parts locally or directly from us is seamless, reducing equipment downtime during critical harvest windows.

Queensland Extreme Condition Practical Study: Overcoming the Dust and Heat

In the vast agricultural expanses of Australia, particularly in Queensland and Western Australia, driveline components face existential threats that European or North American conditions rarely present. Ambient temperatures frequently exceed 40 degrees Celsius, and the ultra-fine “bull dust” acts as an abrasive grinding paste on exposed moving parts.

Our engineering team conducted extensive field studies on broadacre farms in regional Queensland. Standard imported shafts failed at an alarming rate—grease in the U-joints liquefied and escaped due to high thermal loads, followed by rapid bearing disintegration due to dust ingress. The Ever-power L Series addressed this locally specific challenge by implementing high-temperature, extreme-pressure (EP) lithium complex grease, paired with multi-lip nitrile rubber seals on the trunnion bearings. Furthermore, we ensured our guarding complies strictly with the Australian Standard AS 1121.4 (Agricultural tractors and machinery – Power take-off drive shafts and power-input connection), providing operators with the highest level of shielding against entanglement hazards in remote locations where medical help is hours away.

Power System Selection Guide: Sizing Your Driveline

Selecting the incorrect tractor pto shaft can lead to inefficient power transfer or catastrophic mechanical failure. As a leading pto shaft supplier, we urge you to use the following engineering matrix to determine the exact L Series model required for your application.

Targeted Installation Steps for L Series PTO Shafts

Proper installation is as critical as the manufacturing quality itself. A poorly installed pto drive shaft is a hazard to both the machinery and the operator. Follow these engineer-approved steps for flawless integration:

1. Preparation and Cleaning: Turn off the tractor engine, remove the key, and engage the parking brake. Vigorously clean the tractor PTO stub and the implement input shaft with a wire brush and solvent to remove rust, dirt, and old grease.
2. Lubrication Phase: Apply a thin layer of multi-purpose lithium grease to both splined shafts. Pump grease into the U-joint zerk fittings on the L Series shaft until a tiny amount purges from the seals, indicating full bearing pack. Separate the telescopic tubes and heavily grease the internal sliding surfaces.
3. Connecting the Implement End: Slide the implement yoke onto the gearbox input shaft. Depress the quick-release pin or collar, slide it fully onto the splines, and release. Crucial check: Vigorously pull back on the yoke to ensure the locking pin has seated perfectly in the grooved recess of the shaft.
4. Connecting the Tractor End: Repeat the coupling procedure for the tractor side. Ensure the geometry of the shaft allows for a smooth, unkinked run between the two points.
5. Length Verification (The Swing Test): Carefully lift and lower the implement through its full range of motion using the three-point linkage. Verify that the shaft does not bottom out (compress fully) or hyperextend (lose minimum 1/3 overlap). If cutting is required, ensure both the inner and outer tubes, as well as the plastic guards, are cut by the exact same length. De-burr the edges meticulously.
6. Securing Safety Chains: Fasten the anti-rotation chains attached to the PTO shield to a stationary point on both the tractor and the implement. The chains must be tight enough to prevent the guard from spinning with the shaft, but have enough slack to allow for articulation during turning.

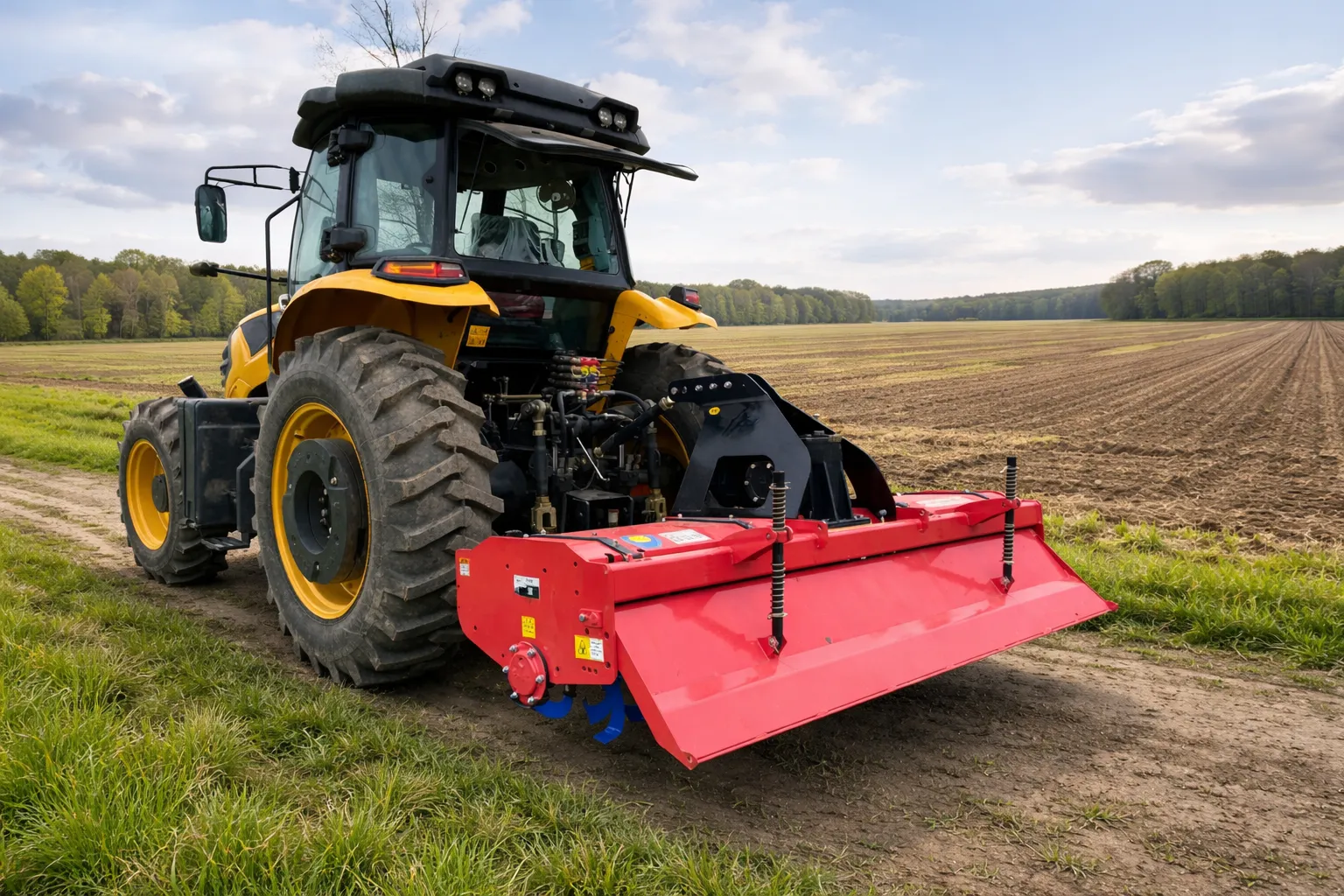

PTO Operation Troubleshooting & Diagnostic Resolution

Even top-tier equipment like the L Series heavy-duty pto shaft requires monitoring. Below is a diagnostic table compiled from our field engineering logs to help operators swiftly identify and resolve driveline anomalies.

Local Industry Application Cases Across Australia: Engineer’s Field Notes

Theory is one thing; practical application is another. As a dedicated pto shaft manufacturer, we actively track the performance of our products across the diverse agricultural zones of Australia. Here are five documented engineering field cases.

• 1. Perth, Western Australia (Broadacre Seeding Equipment):
  Application: High-capacity pneumatic seeders driven by high-horsepower articulated tractors.
  Challenge: Immense dust and long, 16-hour continuous shifts leading to bearing burnout on standard shafts.
  Solution: Installed the L6 Series PTO shaft with enhanced multi-lip seals.
  Client Evaluation: “The Ever-power L6 didn’t skip a beat during planting season. The grease retention is phenomenal compared to what we used previously.” – David M., Wheat Farmer.
• 2. Brisbane, Queensland (Sugarcane Harvesting):
  Application: Sugarcane haul-out wagons and heavy flail mowers.
  Challenge: High shock loads from thick cane stubble and highly humid, corrosive environments.
  Solution: Deployed the L5 Series equipped with a heavy-duty friction slip clutch to absorb the aggressive kinetic spikes.
  Client Evaluation: “We were snapping cheaper shafts weekly in the cane fields. The L5 with the clutch setup has completely eliminated our driveline downtime.” – Thomas R., Cane Contractor.
• 3. Melbourne, Victoria (Dairy Farm Feed Mixing):
  Application: Trailed TMR (Total Mixed Ration) feed mixers.
  Challenge: High starting torque required to mix heavy, wet silage, putting immense strain on the tube yokes.
  Solution: Upgraded to the L32 Series featuring our heavy-wall triangular profile tubing for maximum torque transfer surface area.
  Client Evaluation: “Starting the mixer full of wet silage used to twist our old shafts. The L32 handles the startup torque flawlessly every morning.” – Sarah J., Dairy Operator.
• 4. Sydney Surrounds, New South Wales (Orchard Maintenance):
  Application: Offset rotary slashers navigating tight rows of macadamia trees.
  Challenge: Sharp turning angles requiring constant telescoping action and high U-joint articulation.
  Solution: Fitted the L4 Series PTO drive shaft with wide-angle joints (CV joints) to allow smooth power delivery during tight headland turns.
  Client Evaluation: “The smooth power delivery when turning sharply at the end of the tree rows has saved our tractor’s PTO gearbox from taking a beating.” – Mark V., Orchard Manager.
• 5. Adelaide, South Australia (Vineyard Spraying):
  Application: High-pressure PTO-driven air blast sprayers.
  Challenge: Continuous 540 RPM operation requiring steady, vibration-free power transfer to ensure consistent droplet sizing.
  Solution: Implemented the precision-balanced L3 Series.
  Client Evaluation: “Vibration was cracking our sprayer pump mounts. The dynamic balancing on the Ever-power shaft solved the resonance issue immediately.” – Paul C., Viticulturist.

Frequently Asked Questions (FAQ)

Integrated Solutions: Agricultural Gearboxes & Accessories

A power transmission system is only as strong as its weakest link. While we are a world-class pto shaft supplier, our engineering expertise extends to the entire driveline. The rotational energy from our L Series shafts often terminates at an implement gearbox.

We proudly manufacture high-durability agricultural gearboxes designed to mate perfectly with our PTO systems. Whether you need a right-angle gearbox for a slasher, a reduction gearbox for a fertilizer spreader, or a reversing gearbox, our matching components ensure optimal meshing, reduced backlash, and maximum power transfer efficiency. Furthermore, we maintain a comprehensive inventory of pto parts, including wide-angle joints, shear pin yokes, friction clutches, and replacement profile tubes to keep your machinery running.

Your Trusted Partner in Power Transmission: Custom Engineering

At Ever-power, we understand that standard catalogs do not cover every agricultural innovation. As an elite pto shaft manufacturer, our production facilities are equipped with state-of-the-art CNC machining centers, metallurgical testing labs, and dynamic balancing rigs. We do not just build drivelines; we engineer power transfer solutions.

If your agricultural machinery requires non-standard lengths, unique spline configurations, specialized heavy-duty clutches, or specific torque ratings not found in the L Series standard table, our engineering team is ready to assist. We offer rapid prototyping and full non-standard customization based on your technical drawings or specific operational requirements. We welcome clients to bring us their toughest driveline challenges.
